Building a Bulletproof ML Pipeline: The Unseen Engineering (Part 1)

When I first decided to build a complete MLOps pipeline for network security classification, I thought it would be straightforward. I had the theoretical knowledge and had worked on individual components before. What I didn't anticipate was the web of interconnected challenges that would test my patience and problem-solving skills.

This is the story of building a production-ready machine learning system that detects phishing URLs. In this first part, we'll focus on laying a robust foundation: designing a modular architecture, implementing crucial safeguards like custom logging and data validation, and establishing a reproducible experiment-driven workflow.

The Vision: More Than Just Another ML Project

The goal was ambitious: create a complete MLOps system that could take raw data, process it through multiple validation stages, train models with experiment tracking, and prepare everything for automatic deployment. I wanted to demonstrate not just ML concepts, but the entire engineering ecosystem that surrounds production ML systems—starting with a solid, local foundation.

The Blueprint: Why Modular Architecture is Non-Negotiable

The most critical decision was adopting a modular, pipeline-based architecture. In a monolithic script, everything is tightly coupled, making debugging a nightmare. A modular approach, however, breaks the workflow into distinct components, each with a single responsibility.

This separation of concerns proved invaluable. When I encountered issues with data drift, I could isolate the problem to the data validation component without touching the model training code.

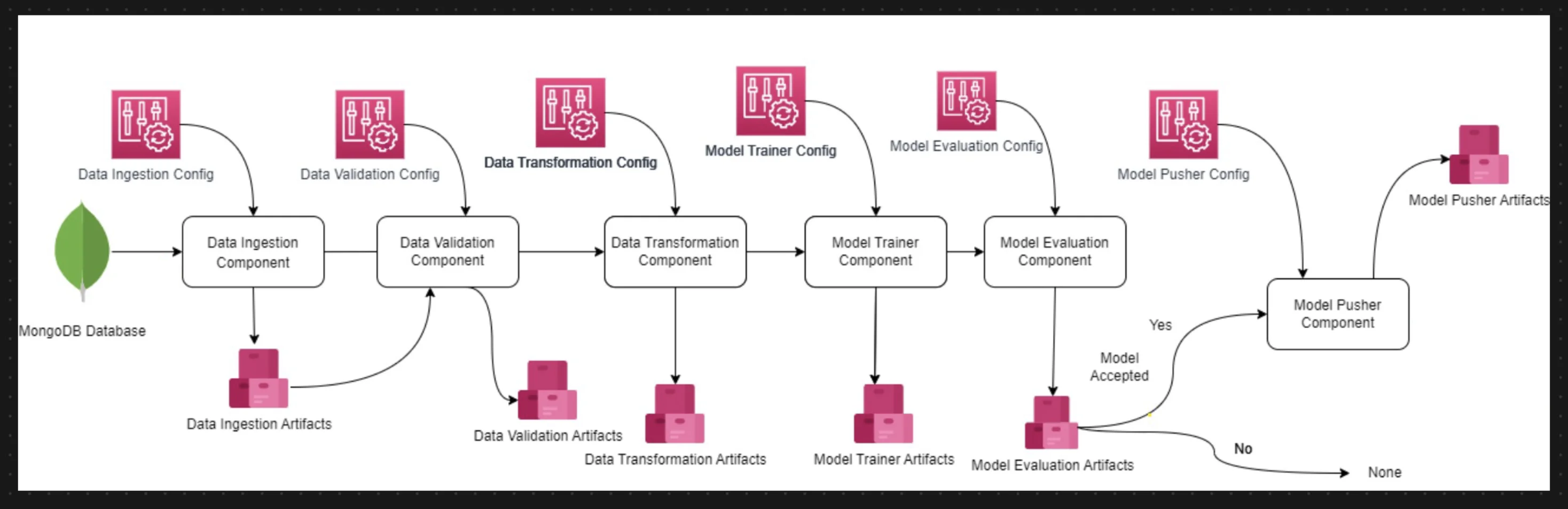

Here's a glimpse into the structure:

# Each component is self-contained with clear inputs and outputs
class DataIngestion:
    def initiate_data_ingestion(self) -> DataIngestionArtifact:
        # Fetch data from MongoDB, split it, and return file paths.
        pass

class DataValidation:
    def initiate_data_validation(self) -> DataValidationArtifact:
        # Takes output from ingestion and validates it against a schema.
        pass

Each component generates its own logs and artifacts, making it easy to trace problems to their source. This was the key to maintaining sanity throughout the project.

The Unsung Heroes: Custom Logging and Exception Handling

Before writing a single line of pipeline logic, I built a comprehensive logging and exception handling system. It seemed like overkill at first, but it became the most valuable investment in the project. When something fails, generic error messages are useless. Custom exceptions, however, provide the exact context needed to debug efficiently.

# Custom exception handling provides structured, actionable error information
class NetworkSecurityException(Exception):
    def __init__(self, error_message: Exception, error_detail: sys):
        super().__init__(error_message)
        # This method extracts the file name, line number, and a clear error message.
        self.error_message = self._get_detailed_error_message(...

These logs and structured exceptions were my best friends, turning vague failures into clear, solvable problems.

The Pipeline in Action: A Step-by-Step Journey

My development process for each component started in a Jupyter notebook. This allowed me to iterate quickly and visualize results before hardening the logic into Python scripts.

Data Validation: The Silent Killer of ML Systems

In the real world, data quality issues are rampant. My validation component went beyond simple schema checking to include data drift detection using the Kolmogorov-Smirnov test. This helps identify when new data differs significantly from the training data, signaling that the model may need retraining.

# Drift detection is crucial for maintaining model performance over time
def detect_dataset_drift(base_df: pd.DataFrame, current_df: pd.DataFrame) -> bool:
    # This function runs a statistical test on each numerical column.
    # It returns True if significant drift is detected.
    pass

Experiment Tracking: Making Science Out of ML

To avoid manually tracking experiments in a spreadsheet (we've all been there), I integrated MLflow from the start. It automatically captures every aspect of a training run: hyperparameters, metrics, data versions, and the final model artifact.

# MLflow integration captures comprehensive experiment information
import mlflow

with mlflow.start_run():
    # Log hyperparameters for reproducibility
    mlflow.log_params(model.get_params())

    # Log performance metrics
    mlflow.log_metrics({'f1_score': 0.95, 'precision': 0.94, ...})

    # Save the model artifact
    mlflow.sklearn.log_model(model, "model")

This turned hyperparameter tuning from a chaotic guessing game into a systematic, scientific process.

Ready for the Next Step

At this point, I had a robust, reproducible, and well-architected ML pipeline that worked perfectly on my local machine. The model was trained, the experiments were tracked, and all the artifacts were neatly organized.

But a model sitting on a local machine provides no real-world value. The next, and far more challenging, step was to take this system and deploy it to the cloud.

In Part 2, we’ll dive into the deployment gauntlet: the CI/CD pipeline, the AWS "nightmare," and the debugging deep-dive that finally brought this project to life.
